RF TEST & MEASUREMENT
50 Ω solutions:
Vector Network Analyzers:
VNA's to 1.3GHz as well as up to 9GHz, 18GHz or 44GHz. Copper Mountain Technologies provides uncompromising performance regardless of application or budget with no hidden fees. There is no extra cost for software, and CMT includes advanced software features on Windows or Linux OS. No extra cost for timely support from automation and applications engineers who function as part of your team to help perform sophisticated measurements.
The ideal tools for on-site installations, filter and antenna tuning, checkup and maintenance, or even R&D and QC.
<- click for demo software download
TR1300/1
2-port 1-path VNA 300kHz - 1.3GHz for measurements on filters, RF lines and cables, antennas,... S21 and S11.
S5045
Full 2-port VNA 9 kHz - 4.5 GHz, S21 S11 S12 and S22 w/ +5 dBm out, 200,001 pts @ 70us/pt
SC5090
Full 2-port VNA 300kHz - 9GHz, S21 S11 S12 and S22 w/ +15 dBm out, 500,001 pts @ 16us/pt
R60
1-port Vector Reflectometer 1MHz - 6GHz, for measurements of RF line, antennas,... S11.
Manual and Automatic Calibration Kits available up to 44GHz, as well as RF cables, adapters and accessories
75 Ω solutions:
SC7540
Full 2-port VNA 100kHz - 4GHz for measurements on Cable-TV systems, S21 S11 S12 and S22 w/ +10 dBm out, 200,001 pts @ 24us/pt
12G-SDI test system
This proven test system can be used to measure SDI systems to up to 12GHz!

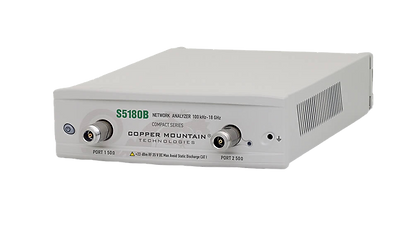

It consists of a CMT S5180B Vector Network Analyzer, with 18GHz RF cables, 12GHz mechanical 50Ω to 75Ω adapters, a 75Ω OSLT calibration kit to 12GHz, and 75Ω 12GHz adapters from N to HD-BNC
75Ω measurements using a 50Ω VNA
Learn how to use a 50Ω VNA for 75Ω measurements up to 12GHz (like for 12G-SDI) in this webinar:
50Ω to 75Ω matching pads available up to 8GHz, and
75Ω Cal Kits available up to 4, 8 or 12GHz - ask us!
H 30 EVOLUTION
Handheld 1 GHz spectrum analyzer
Rugged portable with bright 2.8" TFT color screen
Includes ATSC 1.0 / 8VSB and QAM analyzer
Power, C/N, MER, BER, constellation
Decoded picture and sound
Exceptional price / performance ratio at $1,390
***retrofittable options: ATSC 3.0, HEVC, IPTV, WiFi
Handheld 1GHz RF spectrum analyzer:
$1,390
Spectran V6
Compact Real-Time RF Spectrum Analyzer series,
9 kHz to 6 GHz or 8 GHz
RTBW 44 to 245 MHz
6 GHz scan in 2 ms = 3 THz/s scan speed: never miss any signals, especially intermittent ones!
ECO version starting under $3,000
Look at the RTSA software below:
Real Time RF Spectrum Analyzers:
RF Capture & Playback:
RF Catcher
Portable RF Capture & Playback supporting:
- Compact RF Capture & Playback device and spectrum analyzer
- Frequency range from 70 MHz up to 6 GHz
- Record & Playback real-time RF bandwidth of up to 55 MHz
- RF input + RF output
- 1PPS, 10MHz, GPS inputs, Trigger output
- USB3.0 (1 interface + 1 aux. power)
- GPS Tracking
R&S NRP18T
The Thermal Power Sensor NRP18T is only one of a complete series of R&S RF Power Sensors for different applications, but specifically useful for broadcast applications, as it covers DC to 18GHz, -35dBm to 20dBm (or from 300nW to 100mW)
Controlled via R&S Power Meter or USB PC connection.
RF Power Sensors:
Portable RF Capture & 4G/5G Analyzer:
HEXYLON
RF RECORDER option
* portable with field replaceable battery
* records 25MHz wide spectrum
* 50GB available internal memory
* creates IQ files for use with RF signal generators
Also offers:
Bright 8" multitouch high resolution screen
3.3 GHz spectrum analyzer with waterfall display
ATSC 1.0, ATSC 3.0, DVB-S/2/2X, J.83/B, IP analyzer
4G/5G/LTE/ 5G BROADCAST option
5G detection (subcarrier spacing 15 kHz and 30kHz) 4G detection
SSB spectrum display
Operator identification and CellID
5G SA/NSA mode display
Full treeview available of decoded signalling information (MIB, SIB)
Beam Analysis
Drive Test mode
